青島恒拓自動化積累多年工業產品銷售服務經驗，是萬鑫精工（青島）服務中心，全面負責萬鑫減速機|萬鑫電機|WANSHSIN|萬鑫行星減速機在山東地區的銷售服務工作。在家用電器、輪胎機械、倉儲物流、食品機械、畜牧機械、環保設備、醫療設備等行業中為客戶提供合適的產品和服務
Model | Voltage(V) | Geared Motor | Motor Only | Weight(Kg) | |||||||
Gear Ratio | No-Load | N-Load | At Rated Load | OutPut(W) | |||||||
Speed(rpm) | Current(A) | Speed(rpm) | Current(A) | Speed(rpm) | Torque(kgf.co) | Current(A) | |||||
HM37-1264A | 12 | 1:55 | 64 | 1.2 | 3,520 | 1.2 | 3,000 | 0.5 | 2.4 | 15 | 0.8 |
HM37-1232A | 12 | 1:55 | 32 | 0.6 | 1,760 | 0.6 | 1,170 | 0.5 | 1.4 | 6 | 0.8 |

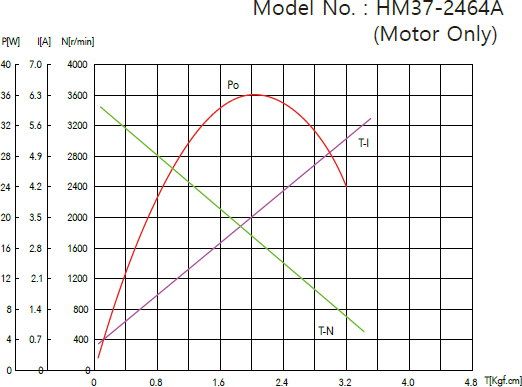

HM37-2464A | 24 | 1:55 | 64 | 1.2 | 3,520 | 1.2 | 3,000 | 0.5 | 1.5 | 15 | 0.8 |
HM37-2423A | 24 | 1:77 | 23 | 0.4 | 1,800 | 0.4 | 1,350 | 0.45 | 0.8 | 6 | 0.8 |
